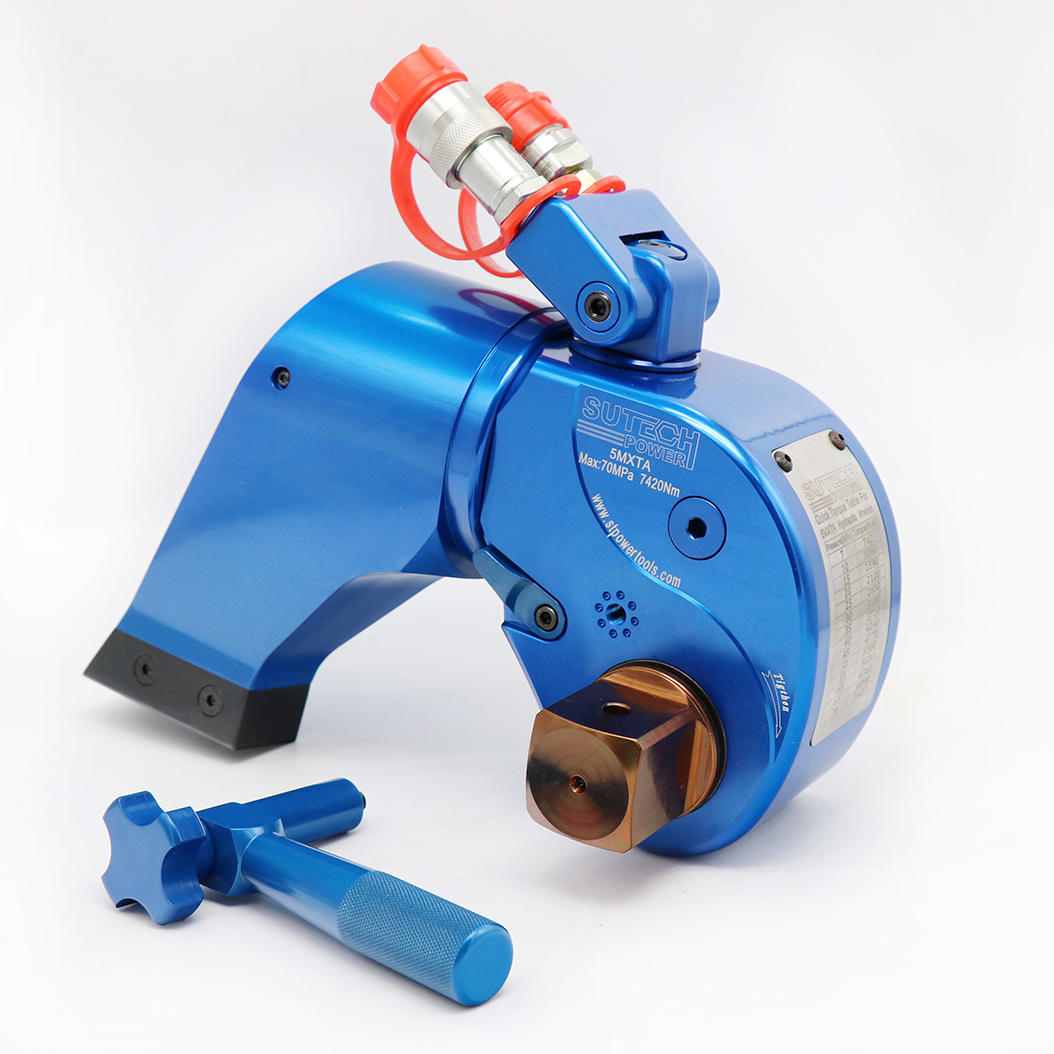

Aircraft material square drive hydraulic torque wrench

Quantity:
  • MXTA
1.Material of hydraulic torque wrench are Aluminum-Titanium alloy and super high strength alloy steel for increased strength, intensity and durability of the tool. High repeatability, a precise design is with accuracy ±3%.
2. The 360°*180° degree hose uni-swivel allows easy fit in confined areas, and eliminates hose kinking. It is unbeaten for durability, and unequalled accuracy.
3. Square drive wrench: the lock of trigger is pressed slightly, and it may as you please situate the reaction arm of 360° trimming style on the support.
4.Anti-reverse pawl designed for preventing ratchet return to maintain required torque.
5. OEM offered, customized design
HTB1YVBUKpXXXXXFXXXXq6xXFXXXZ
Model 1MXTA 3MXTA 5MXTA 8MXTA 10MXTA 15MXTA 20MXTA 25MXTA 35MXTA 50MXTA
Max.Torque(Nm) 1850 4330 7420 10420 15090 20110 26440 34620 47410 69240
Min. Torque(Nm) 185 433 742 1015 1510 2011 2504 3306 4741 6925
Drive 3/4″ 1″ 1-1/2″ 1-1/2″ 1-1/2″ 2-1/2″ 2-1/2″ 2-1/2″ 2-1/2″ 2-1/2″
Nut hex range(mm) 24-55 32-75 41-85 46-95 55-105 60-115 65-130 75-145 95-170 105-185
Bolt size range (mm) 16-36 22-48 27-56 30-64 36-72 39-80 42-90 48-100 64-120 72-130
L1(mm) 130 170 202 228 237 273 287 323 351 376
L2(mm) 102 140 160 184 192 223 248 256 271 295
L3(mm) 182 249 286 3265 336 391 433 464 494 528
H1(mm) 52 70 81 90 100 110 120 138 153 162
H2(mm) 77 98 125 134 144 164 187 206 217 226
H3(mm) 96 127 149 172 181 206 221 258 279 291
H4(mm) 133 165 184 207 216 241 256 293 315 326
R(mm) 25.8 34.8 39.8 46.8 50.8 56.8 59.8 70.8 76.8 78.8
Weight(kgs) 2 4 7 10.6 12.9 20 25 33.8 43 52
