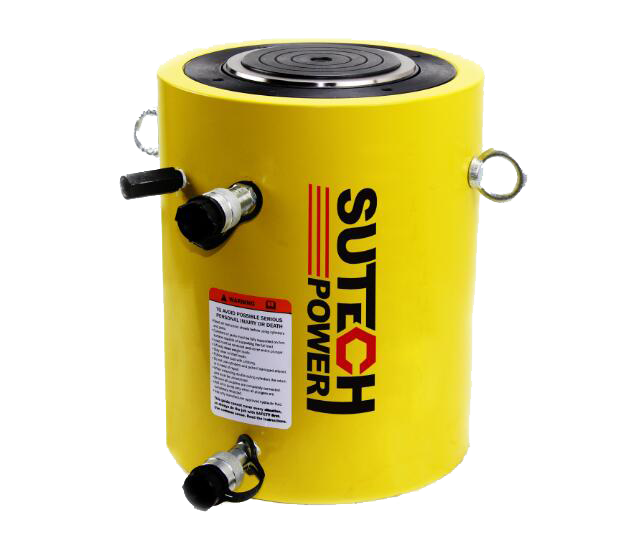

•high tonnage double acting hydraulic cylinders are designed specifically for heavy lifting up to 1,000 tons
•high tonnage double acting hydraulic cylinders are designed specifically for heavy lifting up to 1,000 tons
Model No.
Capacity
Stroke
Effective Area2 )
Oil capacity3 )
Collapsed Height
Push
Pull
Push
Pull
CLRG-502
50
50
77.0
38.5
385
192
162
CLRG-504
100
77.0
38.5
770
385
212
CLRG-506
150
77.0
38.5
1155
577
262
CLRG-508
200
77.0
38.5
1540
770
312
CLRG-5010
250
77.0
38.5
1924
962
362
CLRG-5012
300
77.0
38.5
2309
1155
412
CLRG-1002
100
50
132.7
61.9
664
309
182
CLRG-1004
100
132.7
61.9
1327
619
232
CLRG-1006
150
132.7
61.9
1991
928
282
CLRG-1008
200
132.7
61.9
2655
1237
332
CLRG-10010
250
132.7
61.9
3318
1546
382
CLRG-10012
300
132.7
61.9
3982
1856
432
CLRG-1502
150
50
198.6
96.5
993
482
196
CLRG-1504
100
198.6
96.5
1986
965
246
CLRG-1506
150
198.6
96.5
2978
1447
296
CLRG-1508
200
198.6
96.5
3971
1930
346
CLRG-15010
250
198.6
96.5
4964
2412
396
CLRG-15012
300
198.6
96.5
5957
2895
446
CLRG-2002
200
50
265.9
127.0
1330
635
216
CLRG-2006
150
265.9
127.0
3989
1905
316
CLRG-20012
300
265.9
127.0
7977
3809
466
CLRG-2502
250
50
366.4
152.6
1832
763
235
CLRG-2506
150
366.4
152.6
5497
2289
335
CLRG-25012
300
366.4
152.6
10993
4578
485
CLRG-3002
300
50
456.2
151.4
2281
757
312
CLRG-3006
150
456.2
151.4
6843
2270
412
CLRG-30012
300
456.2
151.4
13685
4541
562
CLRG-4002
400
50
559.9
193.5
2800
967
375
CLRG-4006
150
559.9
193.5
8399
2902
475
CLRG-40012
300
559.9
193.5
16797
5804
625
CLRG-5002
500
50
730.6
247.6
3653
1238
419
CLRG-5006
150
730.6
247.6
10959
3713
519
CLRG-50012
300
730.6
247.6
21918
7427
669
CLRG-6002
600
50
855.3
295.4
4276
1477
429
CLRG-6006
150
855.3
295.4
12829
4431
529
CLRG-60012
300
855.3
295.4
25659
8862
679
CLRG-8002
800
50
1176.3
387.0
5881
1935
474
CLRG-8006
150
1176.3
387.0
17644
5806
574
CLRG-80012
300
1176.3
387.0
35288
11611
724
CLRG-10002
1000
50
1465.7
541.7
7329
2709
564
CLRG-10006
150
1465.7
541.7
21986
8126
664
CLRG-100012
300
1465.7
541.7
43972
16252
614
